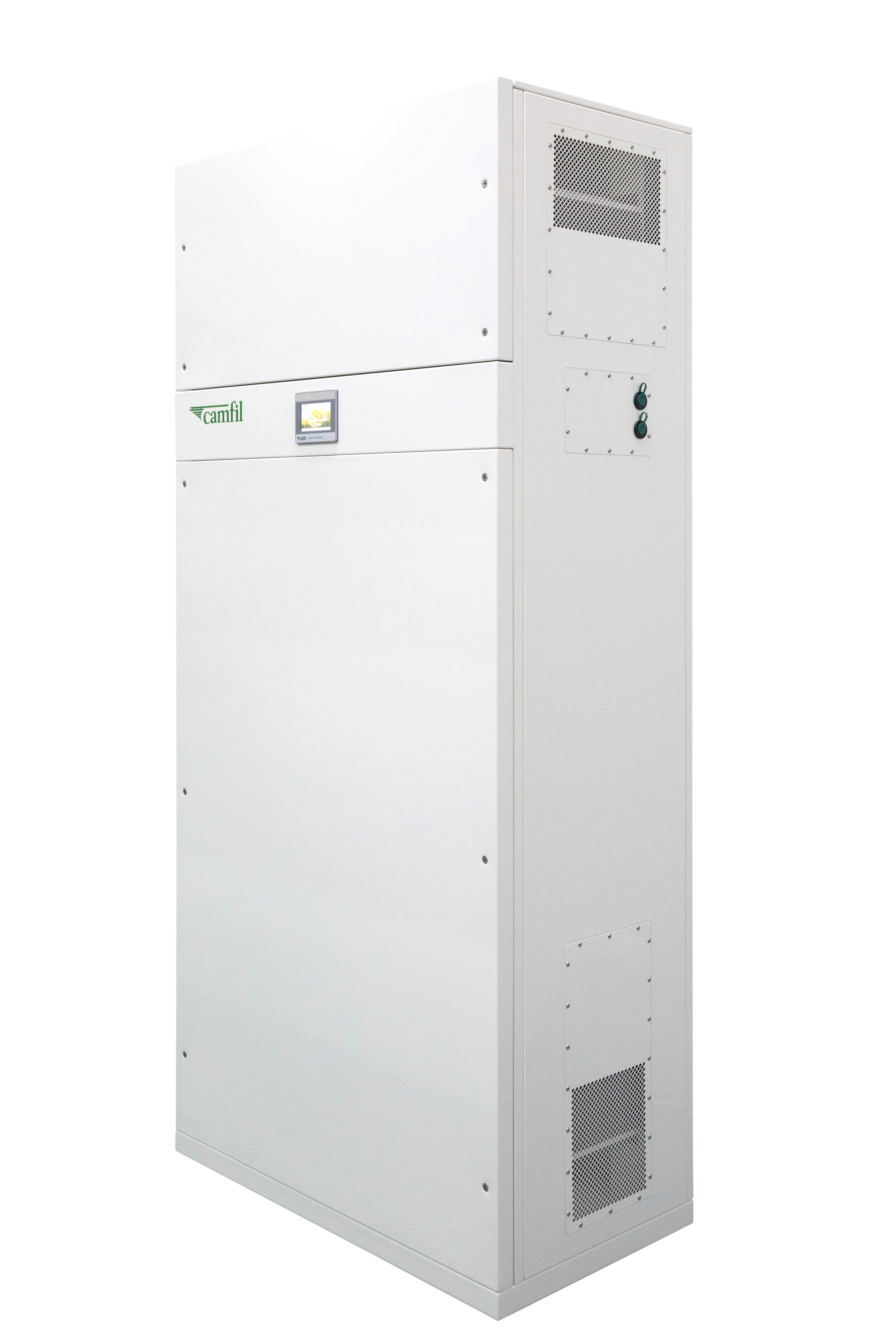

Camfil Air Purifications System

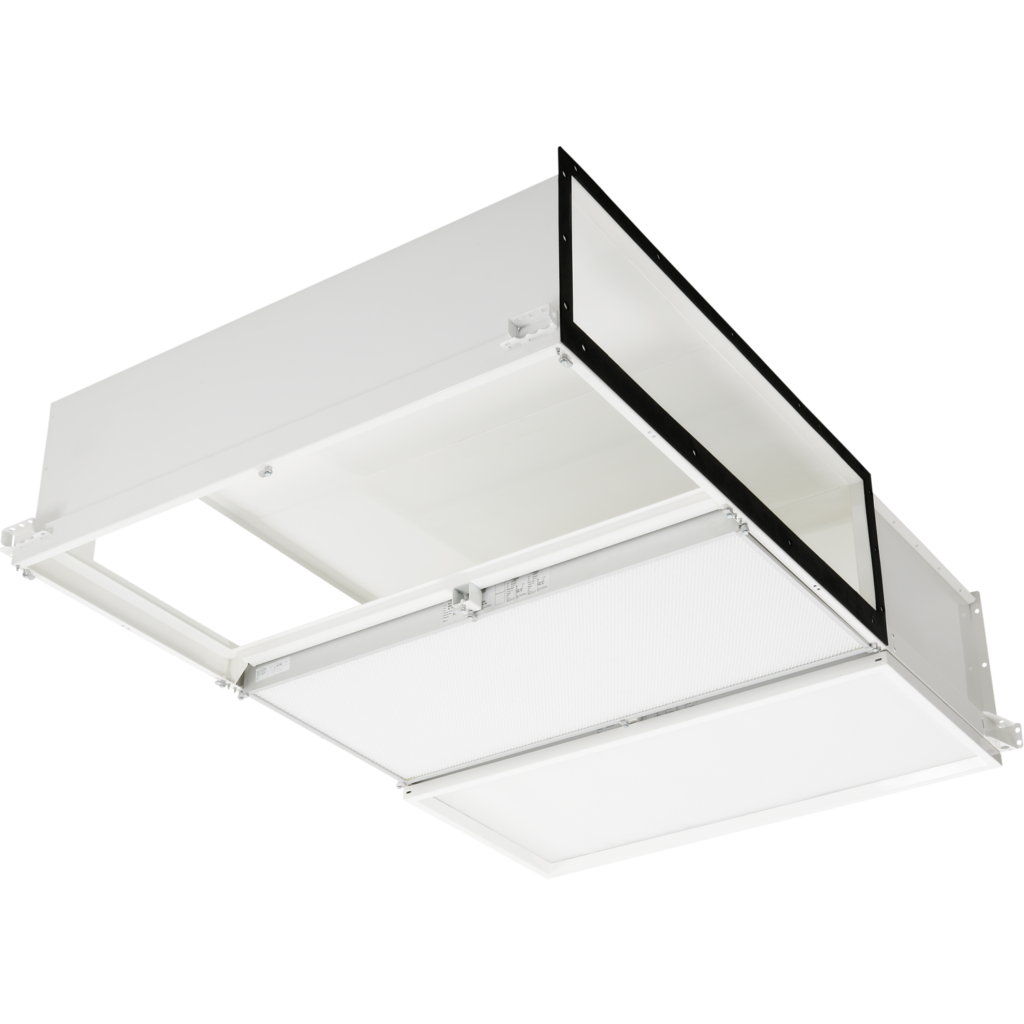

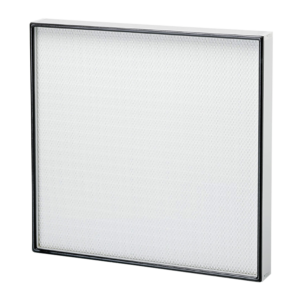

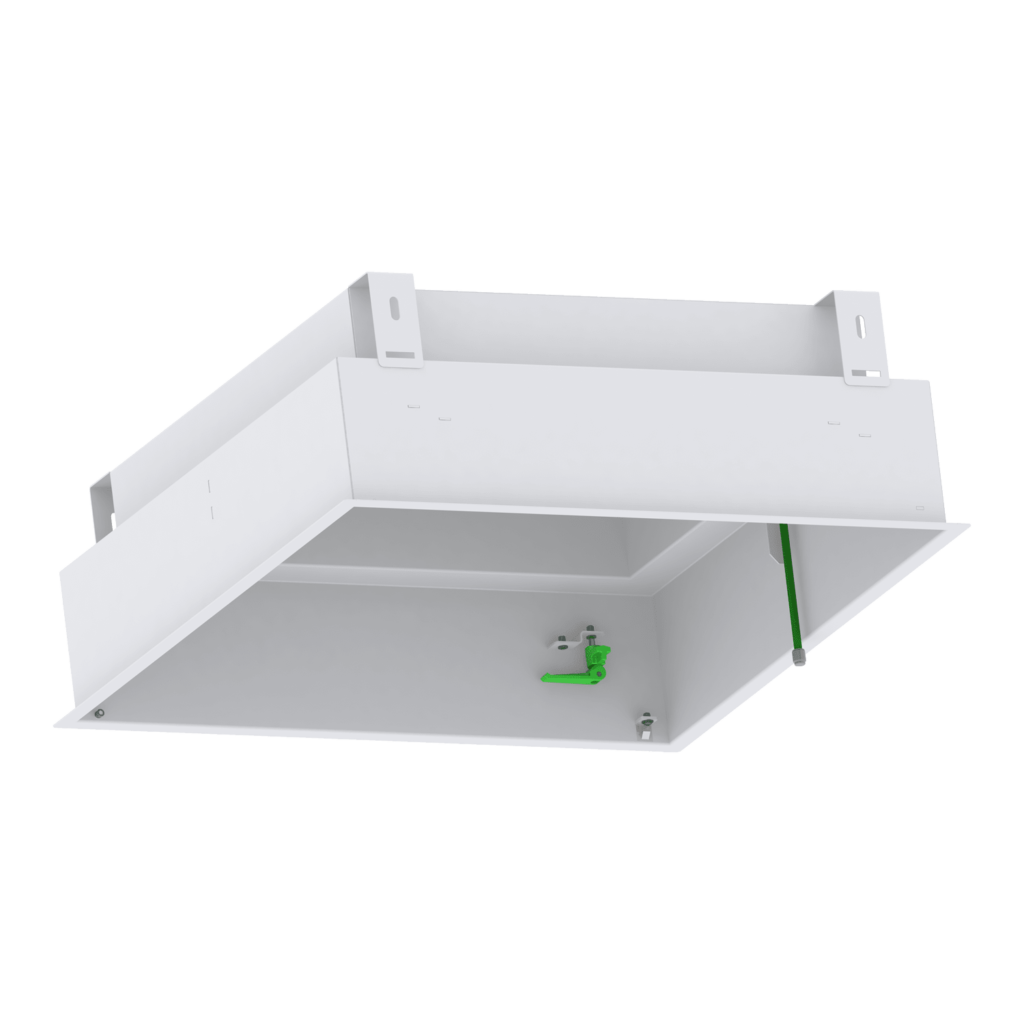

Megalam Package

Designed for cleanroom ceilings and terminal housings
Terminal filtration for laminar or turbulent airflow
ProSafe filter range ensures full protection of people, processes, and products
ES filter range for energy saving
FabSafe filter range for safe use in microelectronic cleanroom and equipment

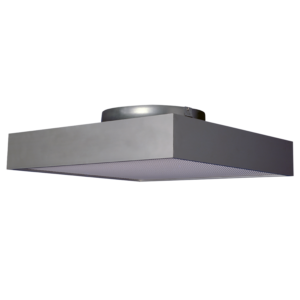

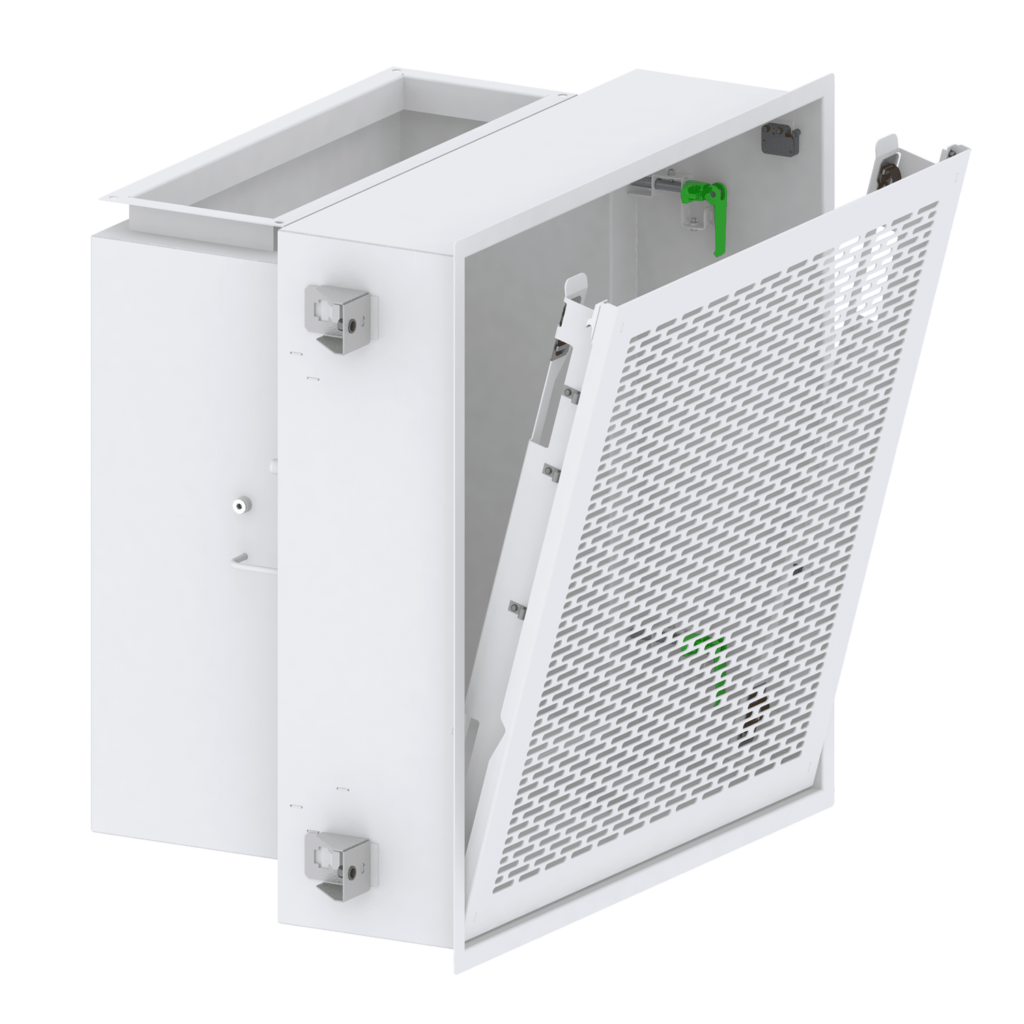

Silent Hood

Very compact filter-diffuser designed for cleanroom
Ready to install with integrated circular connection
Low noise level

Compact Filters (Header Frame)

Absolute™ VGHF

Optimized design for highest performance
High filtration efficiency (EPA/HEPA)
Energy efficient
Long lifetime
Reinforced construction for more stability

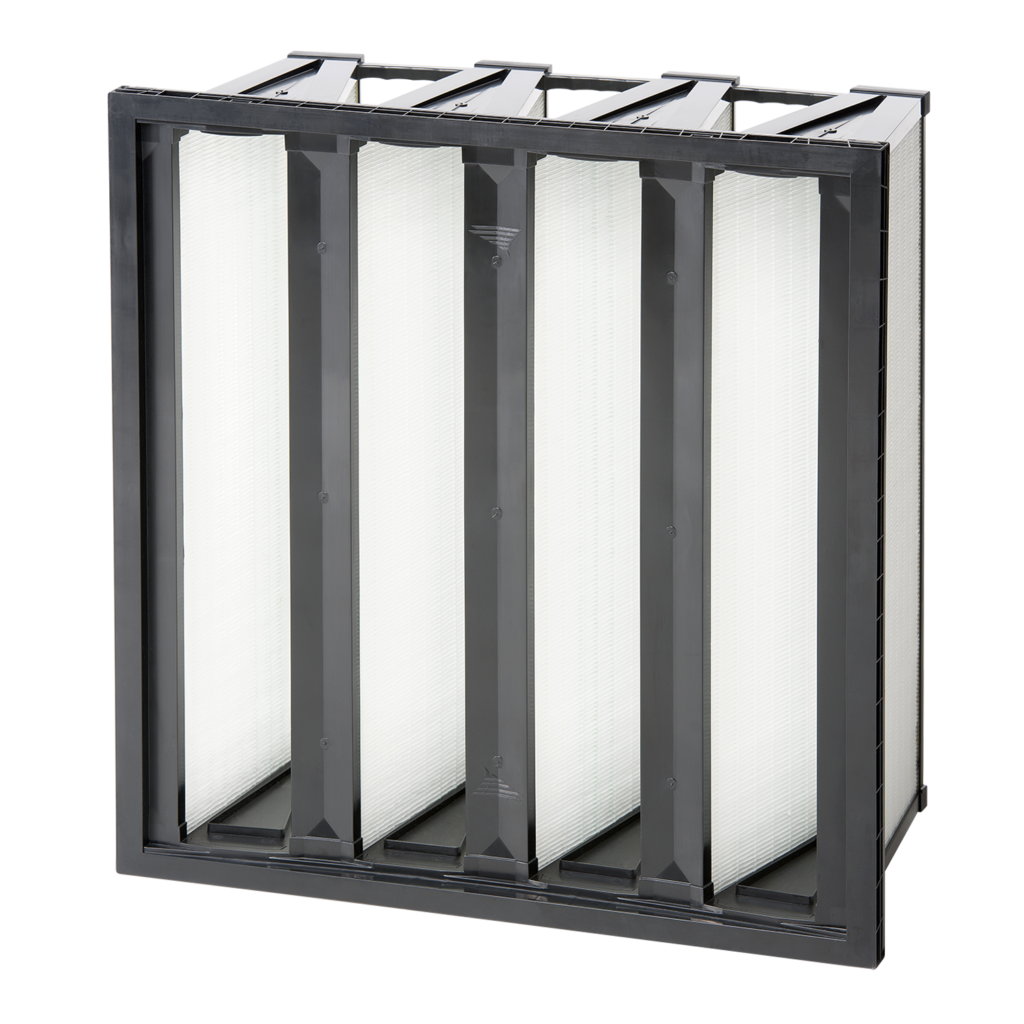

CamPGT

Static air filter with long life and low initial pressure drop
Lightweight construction for easy mounting
Fully incinerable

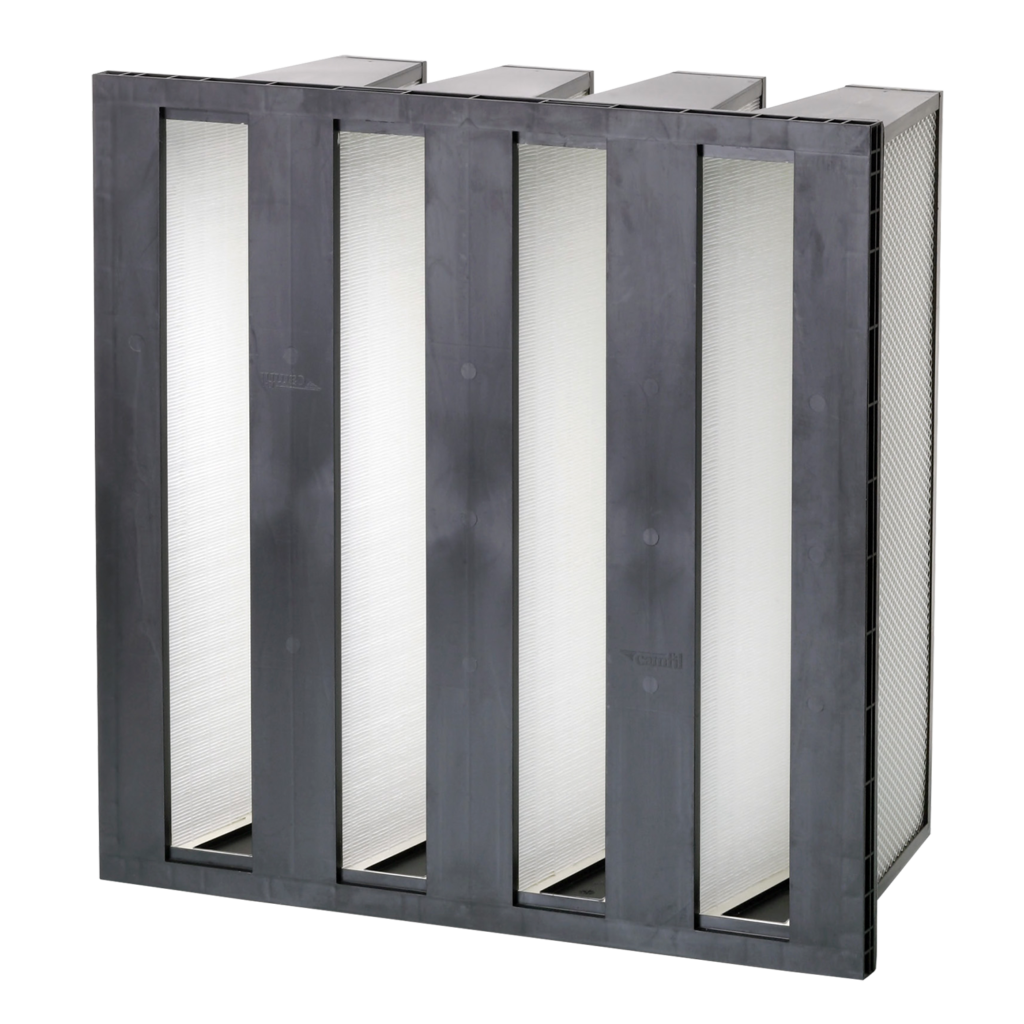

Opakfil

Optimized design for high performance
High filtration efficiency (up to E10)
High energy efficiency
Long lifetime

DUST, FUME & MIST COLLECTORS

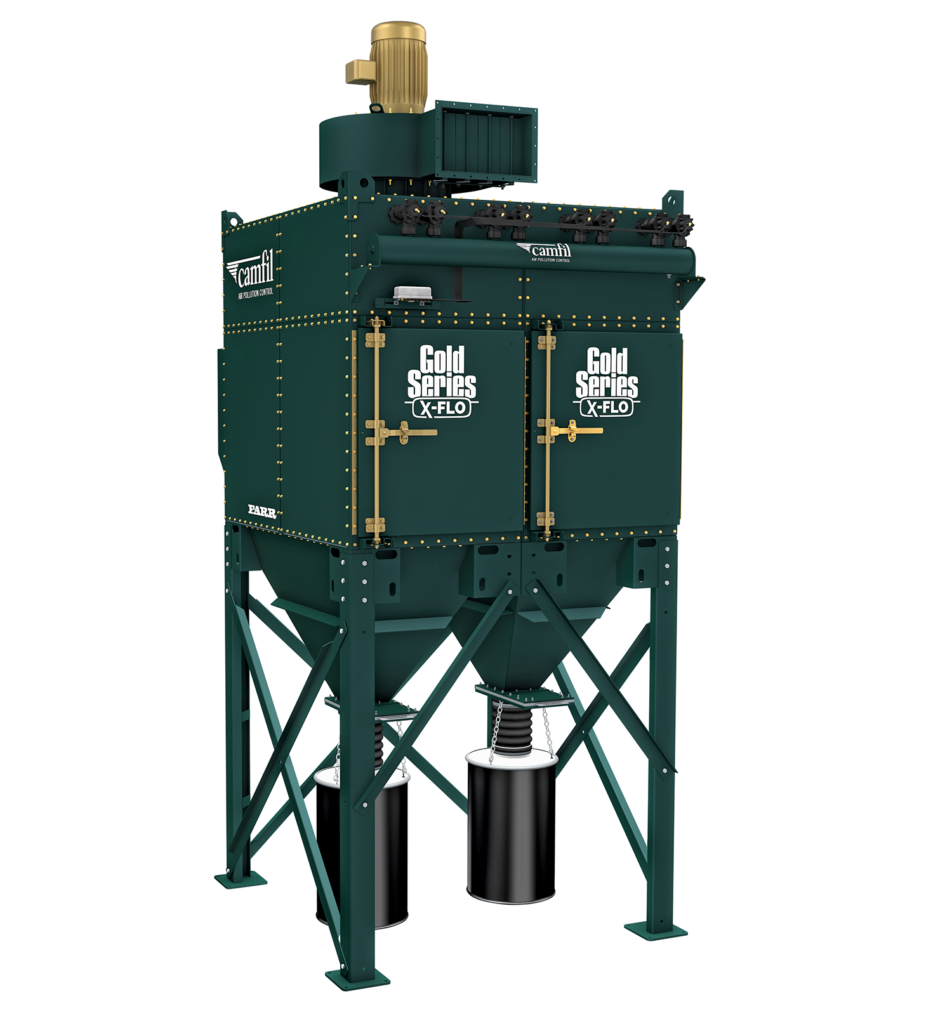

Gold Series X-Flo

Easily customized modular design
Individual modules accommodate airflows up to 6,000 CFM each
Each module holds four HemiPleat® Gold Cone X-Flo filter cartridges
Gold Cone X-Flo cartridges use our proprietary Gold Cone inner pleat pack. This open-bottomed, inner cone of media greatly expands the usable surface area of the cartridge

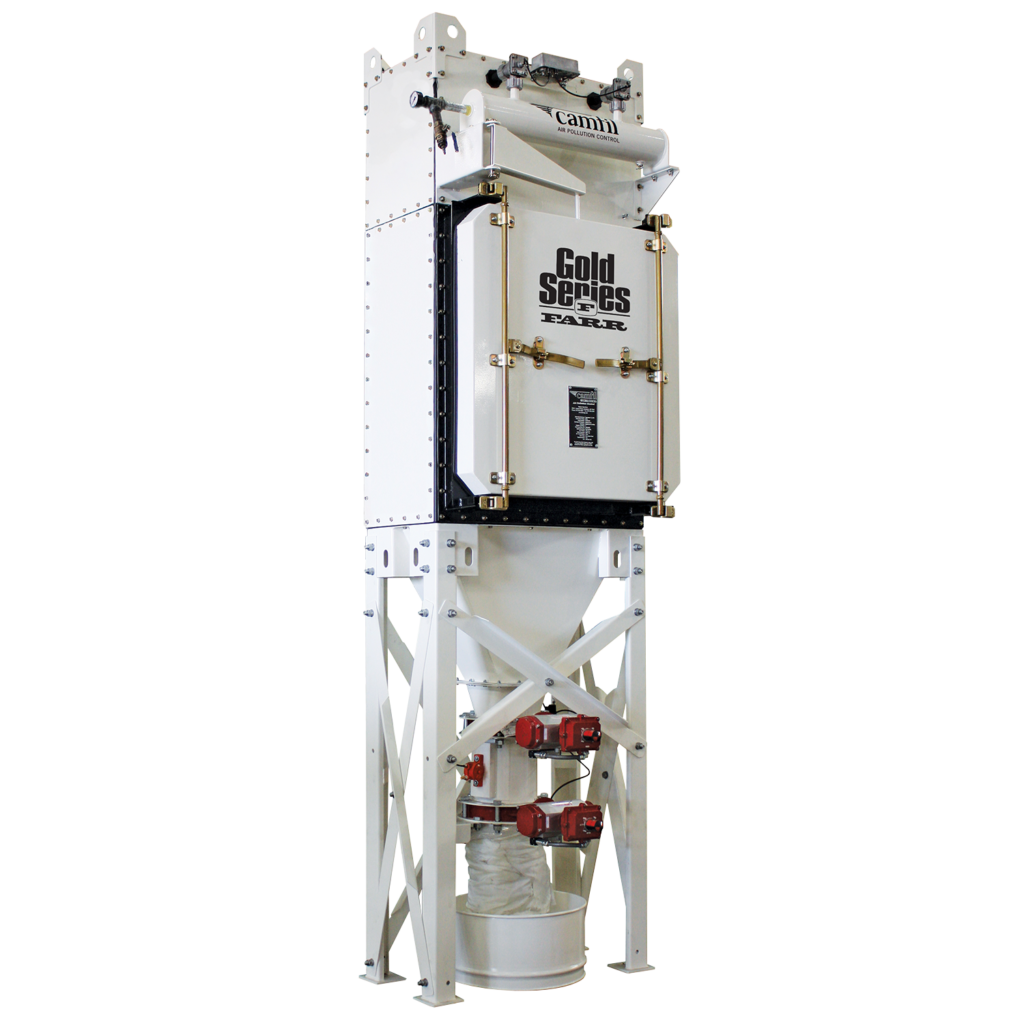

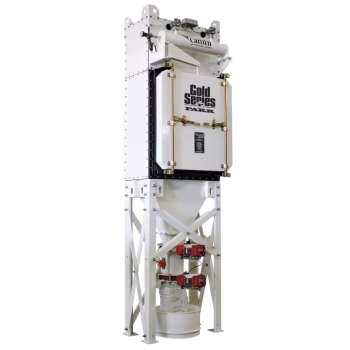

Gold Series Camtain

Filter cartridges are sealed via an internal cam bar action, allowing convenient changeout through the safe-change filter replacement system
High-entry, cross flow inlet
Vertically arranged filters shed virtually all the particles

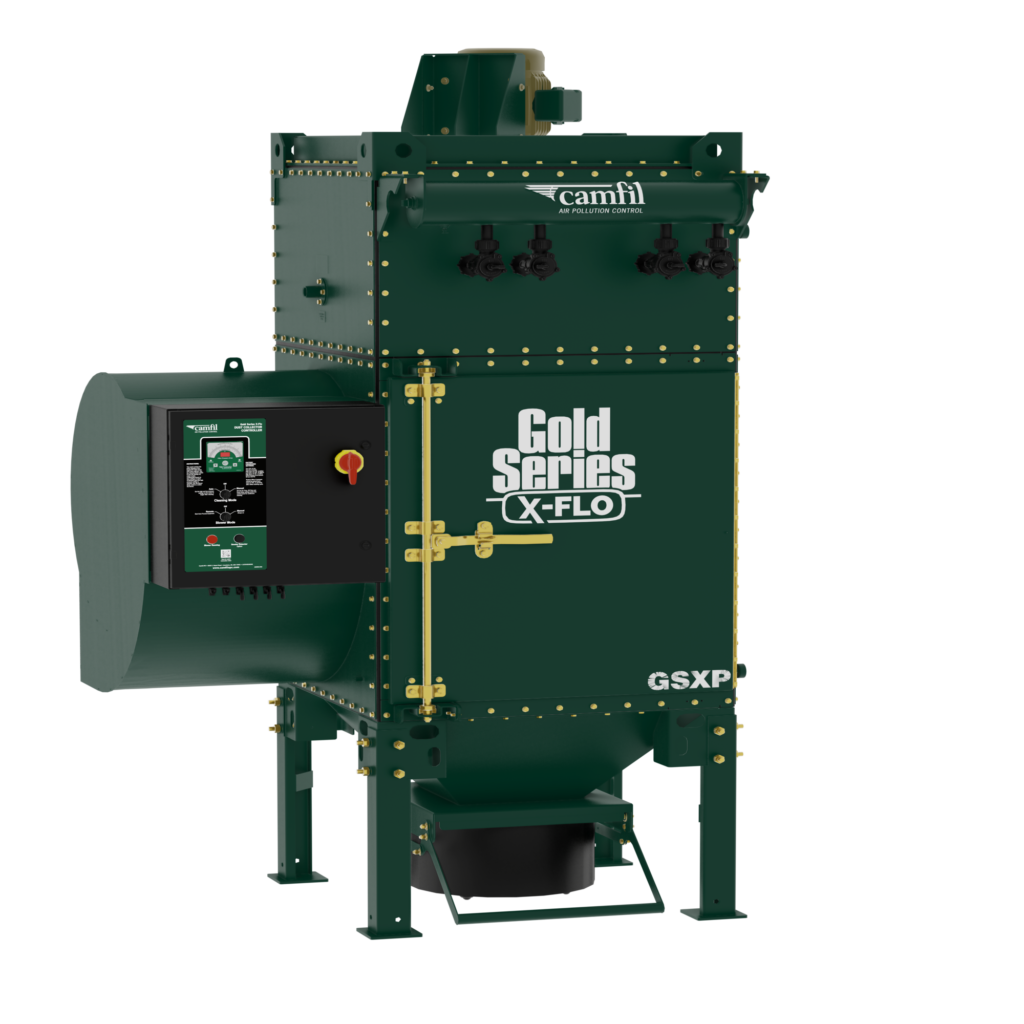

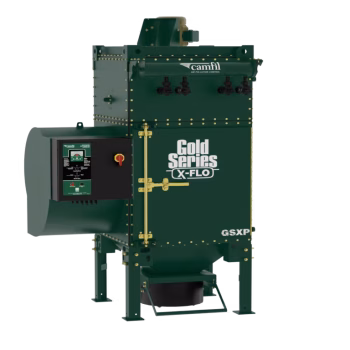

Gold Series GSXP

Fully assembled and wired at the factory, including all controls, fan, and cleaning system
HemiPleat® Gold Cone® fire-retardant filter technology
Airflows from 1000 to 3000 CFM at 8 in. w.c.
Reverse pulse cleaning system with on-demand, manual and remote controls

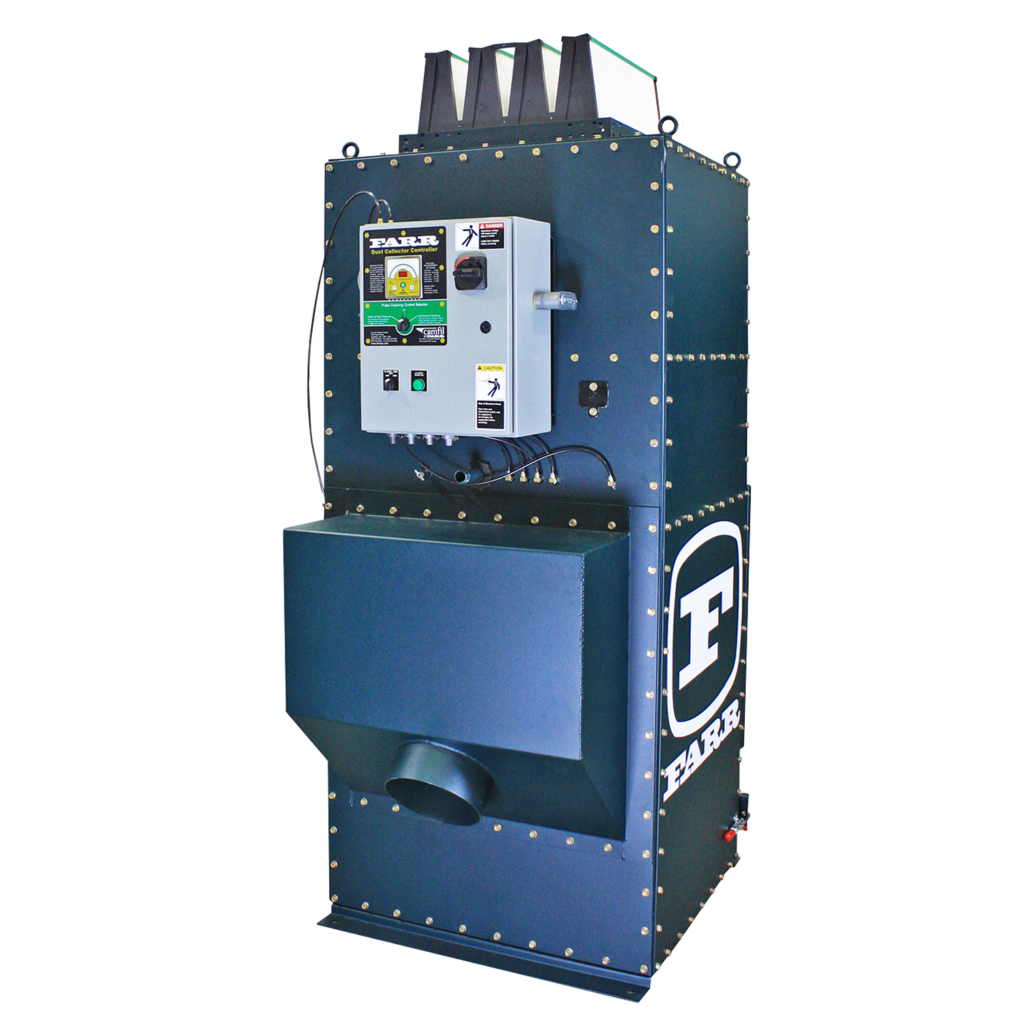

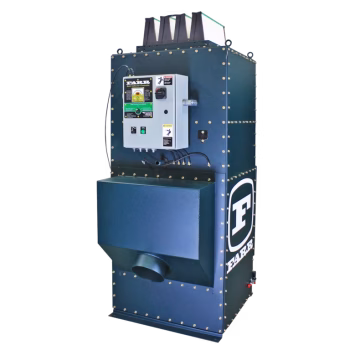

Gold Series GS4M Mini

Fully assembled and prewired unit includes fan, controls, motor starter, filter cartridges, and cleaning system
Integrated spark trap
Easy-to-remove dust drawers
Toolless cam-lock cartridge removal
Built-in safety monitoring filter

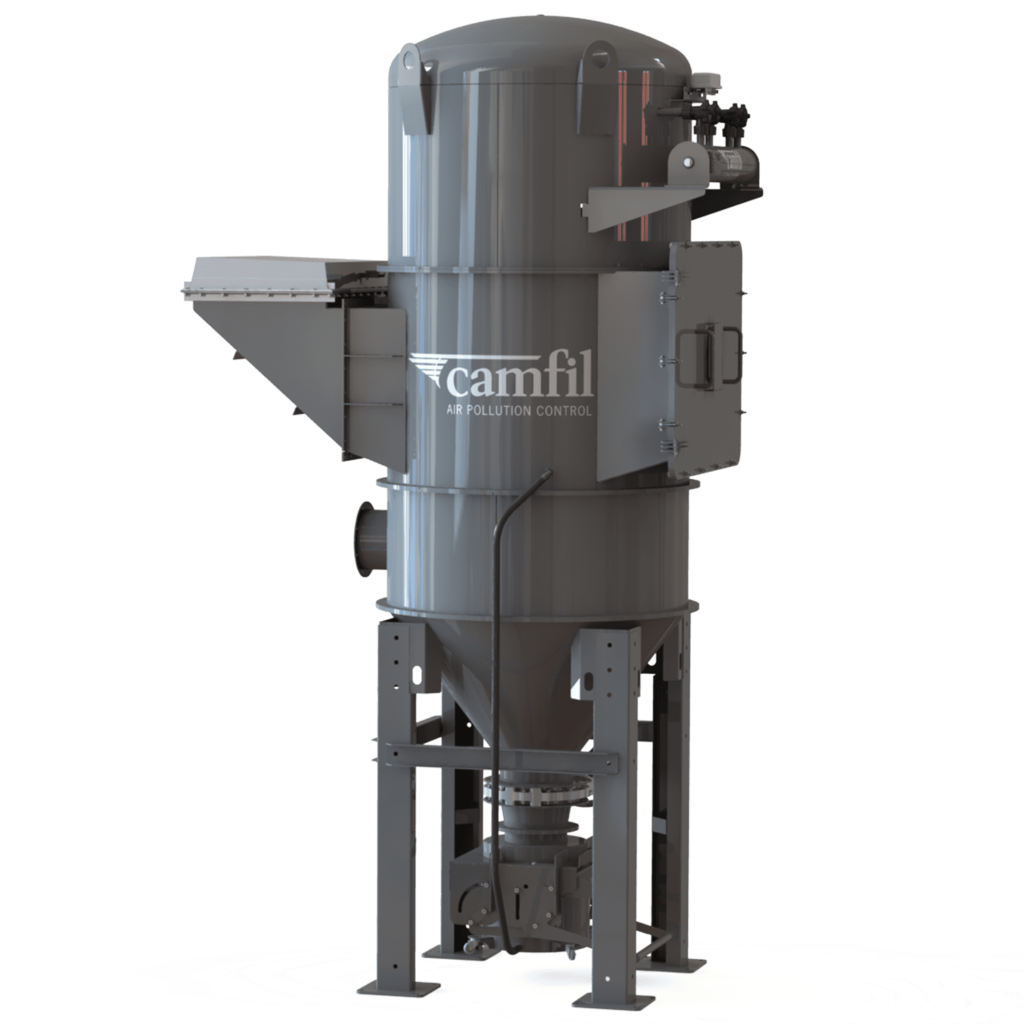

Gold Series High Vacuum

Heavy-duty 10 and 7 gauge construction
Flanged, tangential inlet minimizes dust contacting the filters
Can be configured as a stand-alone dust collector or without hopper and support structure for bin vent applications

Handte Wet Scrubbers

No filter elements
Low maintenance
Uses centrifugal force to remove pollutants from the air

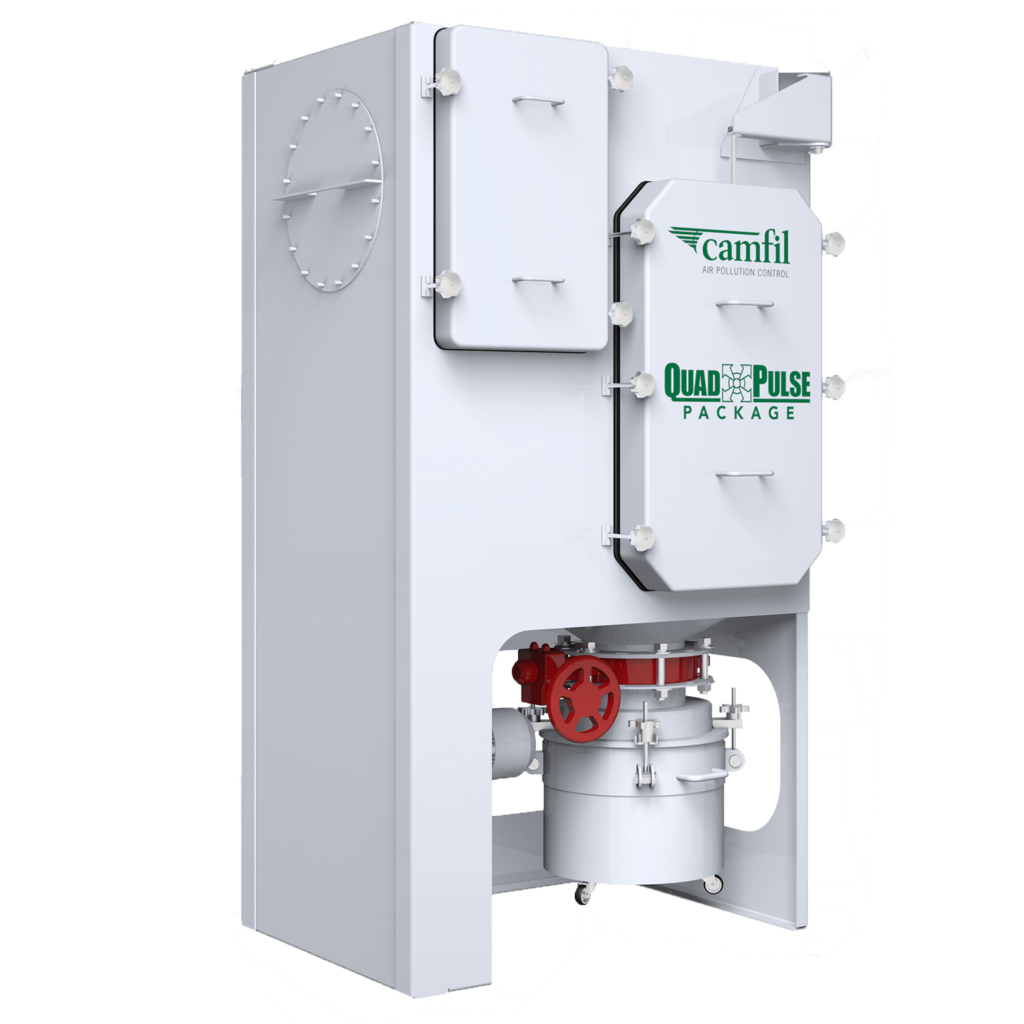

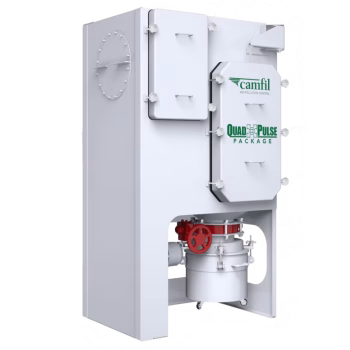

Quad Pulse Package I

Uses one HemiPleat™ Primary filter cartridge
Designed for 295 – 706 cfm air volumes
Explosion pressure shock resistant without the need for additional protection systems
Easy installation
Bag-in/bag-out process for the primary/secondary filters and discharge bin

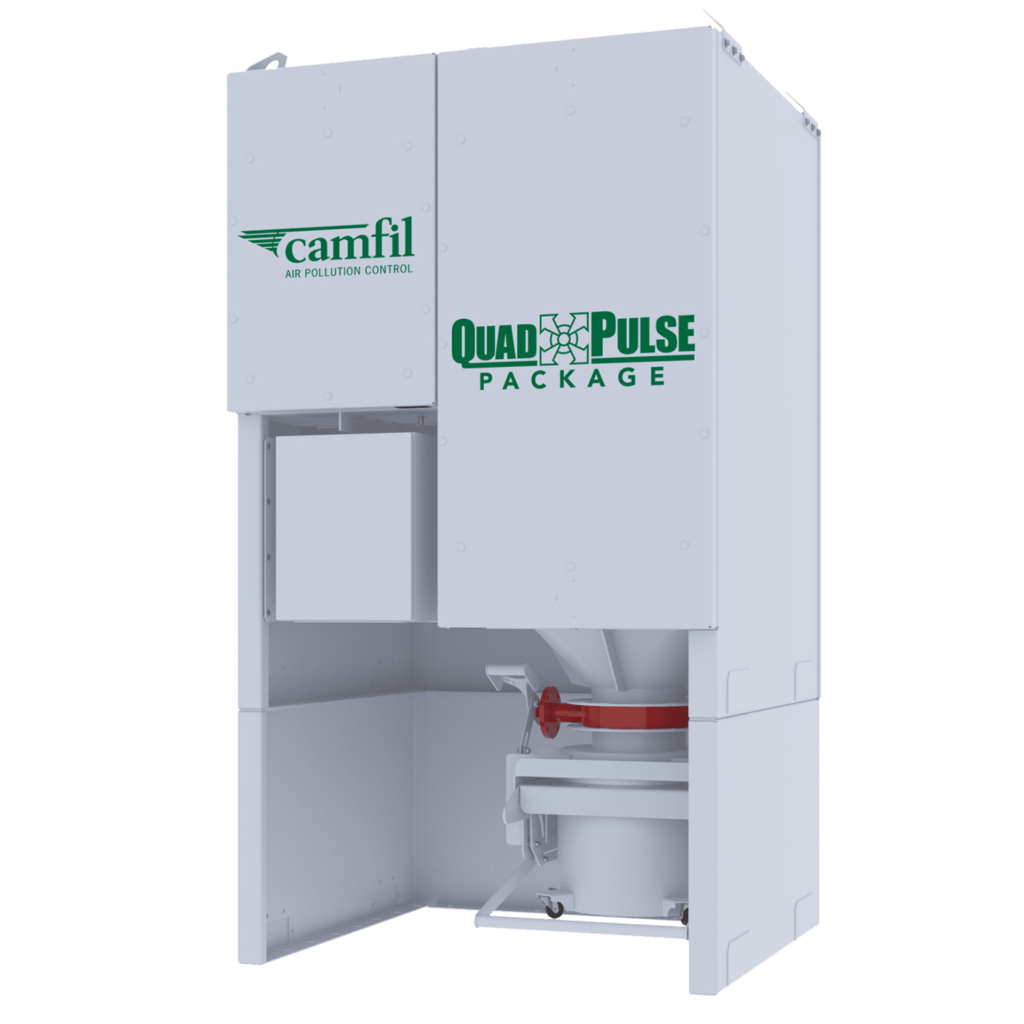

Quad Pulse Package II

Uses two HemiPleat™ Primary filter cartridge
Designed for 590 – 1765 cfm air volumes
Explosion pressure shock resistant without the need for additional protection systems
Easy installation
Bag-in/bag-out process for the primary/secondary filters and discharge bin

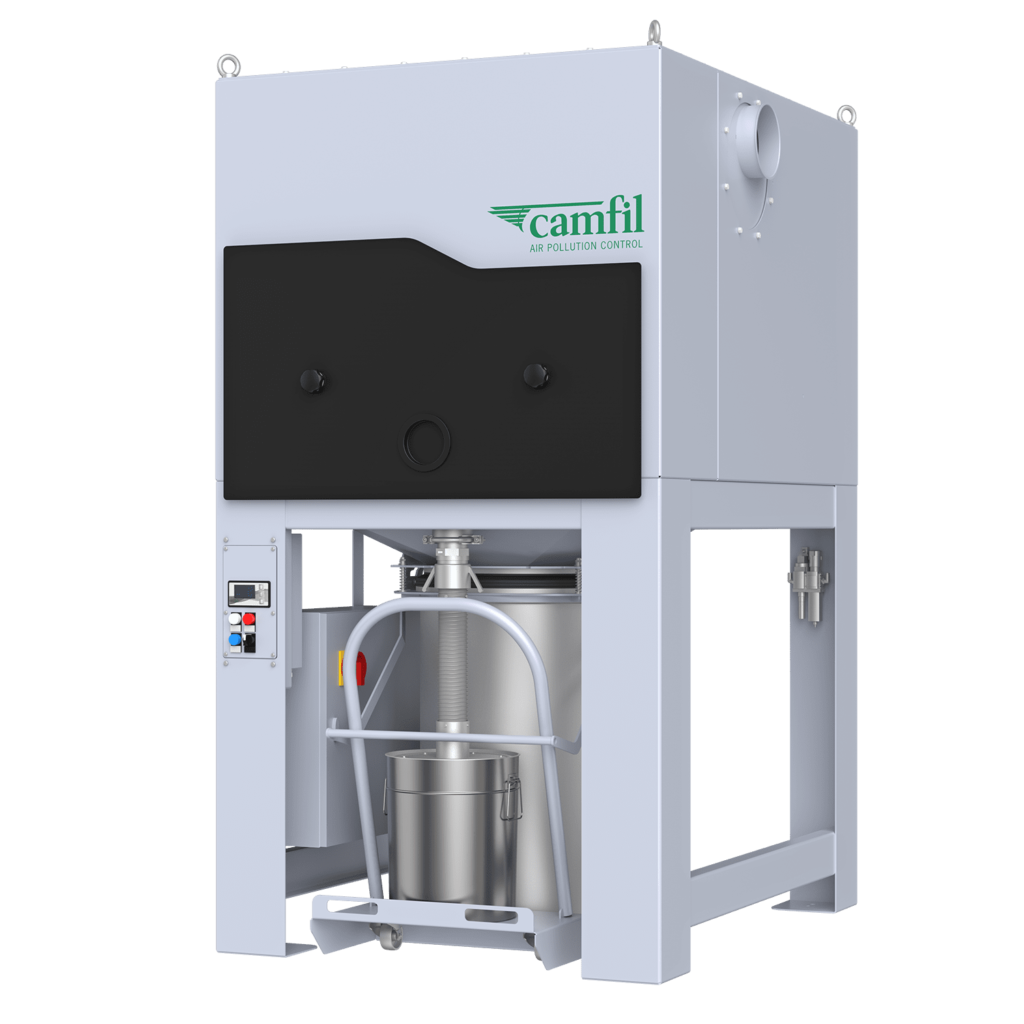

Quantum Series

Volume ow 1500 m3/h—5500 m3/h
Compact design with integrated cyclone pre-separator, fan starter and controller
Cyclone pre-separation of metal sparks
Pre-separation of coarse and hot particles in separate bin
Optimized dust handling

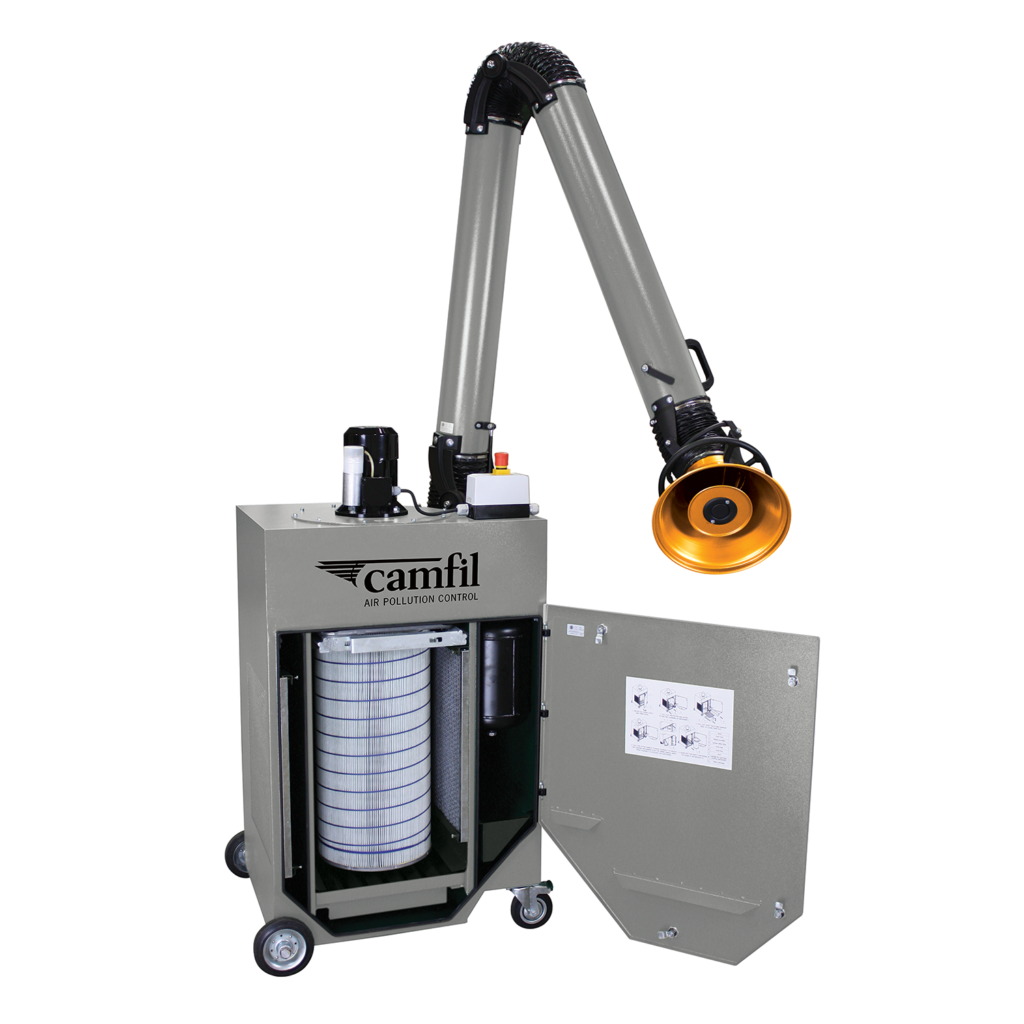

Zephyr III

Portable cleaner for airborne dust and fumes
Three-stage filtration
Rollout dust drawer
Easy, 360º capture hood positioning
Plug-n-play: simply supply electrical and compressed air connections
Manually-activated, venturi-assisted pulse cleaning system

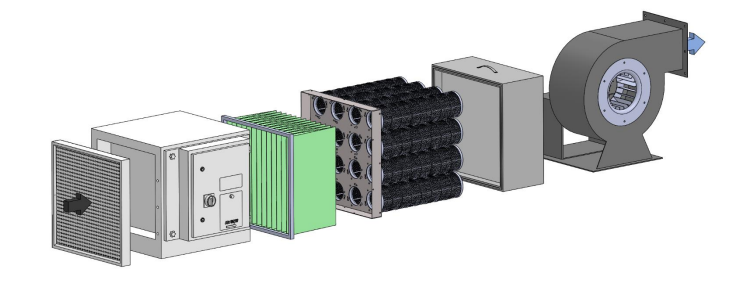

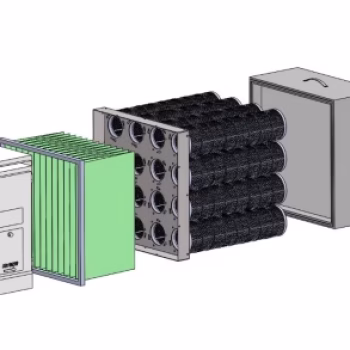

Ecology Unit

The primary function of the ecology unit is to effectively filter particulate phase, oil,

smoke, grease, odor of extracted kitchen fumes. Achieving this can only be done by

using effective multistage filtration solutions. Camfil Ecology Unit provides unique

filtration options to select and design depending on site needs.

• Particulate load Reduction (metal filter)

• Particulate collection (Electrostatic precipitators & bag filters)
• Odor control (Activated carbon filters)
• High Efficiency filters & (HEPA filters & Exhaust fan)

• Airflow Range: 1000 to 10000 CFM

HOUSINGS, FRAMES & LOUVRES

Safety Housing

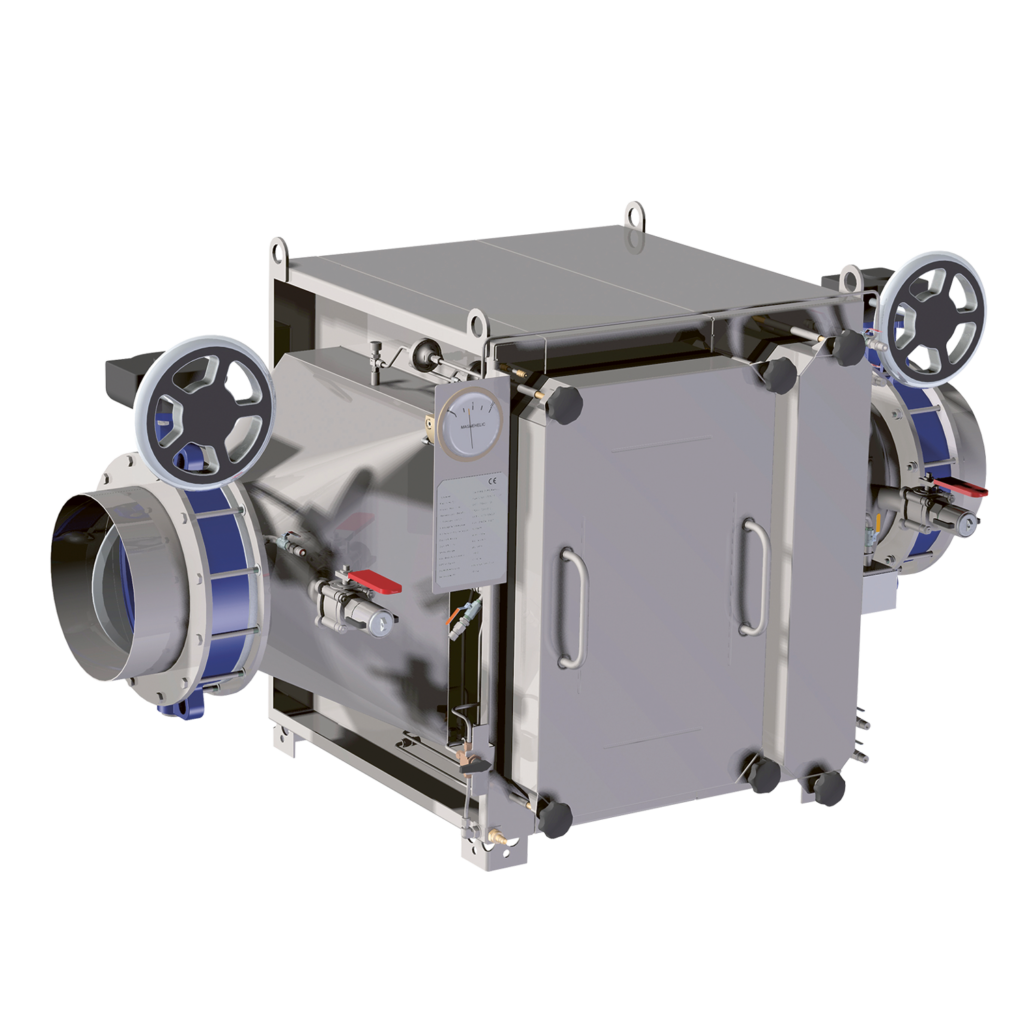

CamContain

Designed to meet the highest biosafety demands
Integrated scanning system
Airtight dampers
Safe decontamination concept

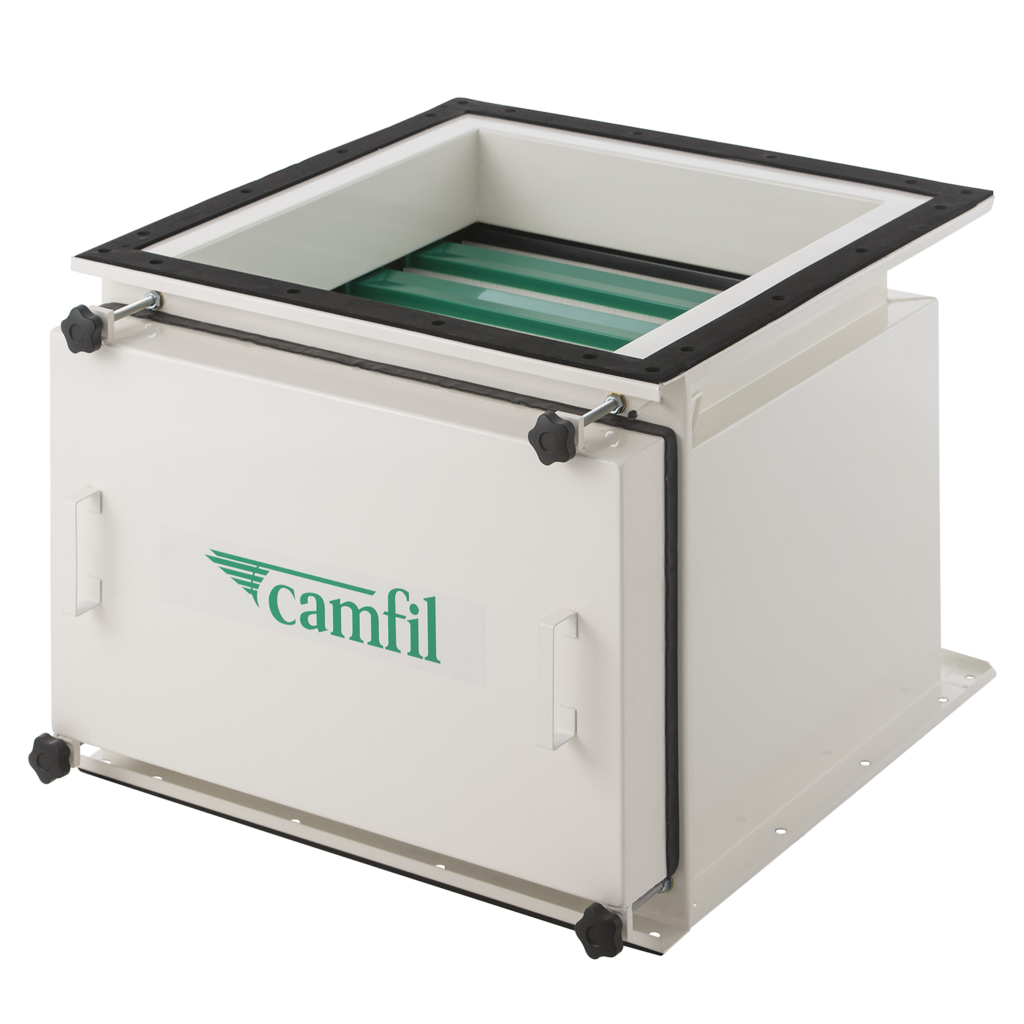

CamSafe

Modular system for high air flow
Multiple filter steps
Scanning system optional
Safe and simple filter clamping with double safety functions

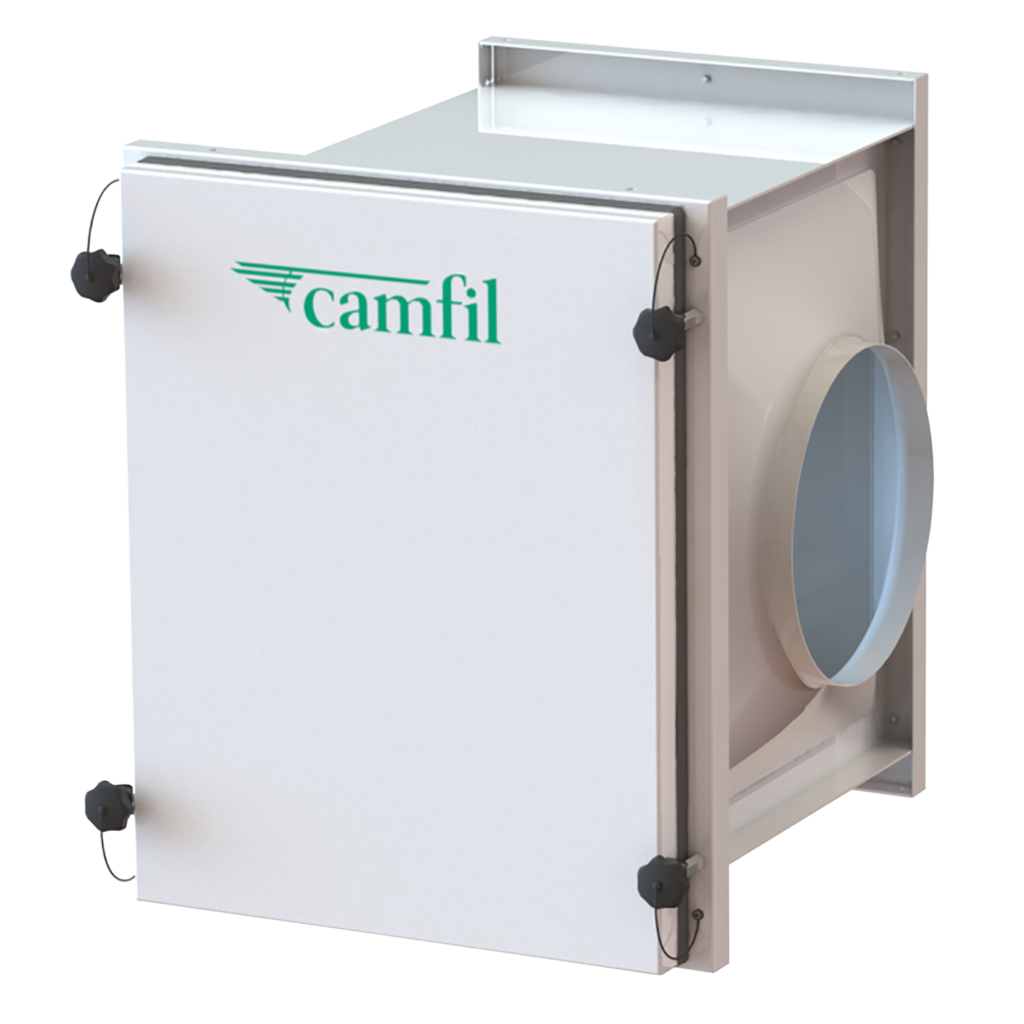

CamBox

For full- and halfsize compact filters (box type)
Circular connections
Ideal for horizontal air flow
Easy to handle and install

Designed to meet the various requirements and needs of air conditioning application as hotels high rise buildings, commercial centers, hospitals and modern manufacturing industries.

Ducted Housing

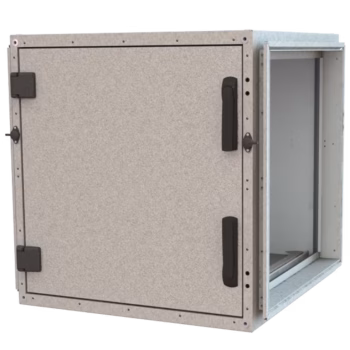

CamCube

For indoor use
Space saving installation
Unique hinge design that ensures door seal compression and allows pressure equalization
Service and maintenance friendly
Built in thermal insulation
