Vision is the Authorized Distributor of Desiccant Technologies Group in the Middle East
DT GROUP
Desiccant Technologies Group
Advanced desiccant technologies for precise microclimate control
Desiccant Technologies Group offers three core ranges of industrial desiccant dehumidifiers DL range, MDC range, and LDP range, covering everything from compact, low-capacity units to high-volume, ultra-low-dew-point systems. Each range is engineered for specific airflow capacities, energy efficiency, and application needs, ensuring precise humidity control across North American industrial and commercial settings.
Product Range
DL Range Overview
The DL Range is designed for small to medium airflow requirements, offering quiet operation, user-friendly controls, and compact footprints. Ideal for spaces where low maintenance and advanced monitoring are paramount.
Key Characteristics
- Airflow Capacity: 850-3,500 m³/h
- Moisture Removal: Up to 21.9 kg/h (48.3 lb/h)
- Power Supply: 7.3–27.2 kW (3×400 V, 50 Hz)
Applications: Small process rooms, dry-rooms, archives, and pilot-scale operations where low noise and precise dew-point control are essential.
Desiccant Dehumidifiers | Full DL Range

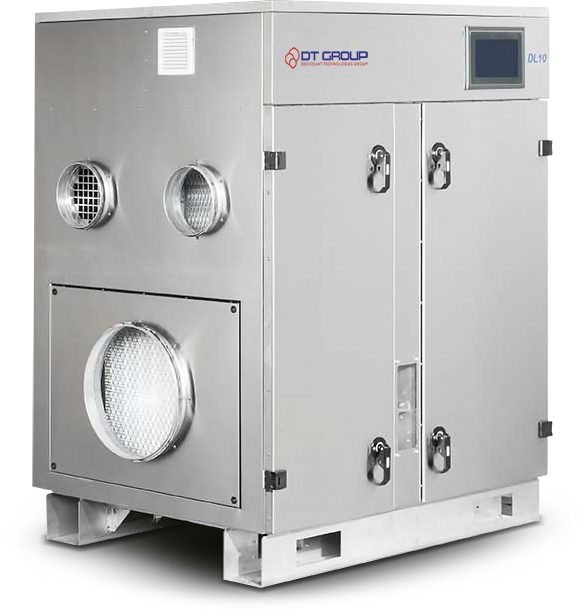

DL10
Rated airflow: 850 m³/h
Dehumidification: 5.1 l/h
Power supply: 7.3 kW
Weight: 198 kg
Dimensions: 1000x700x1145mm

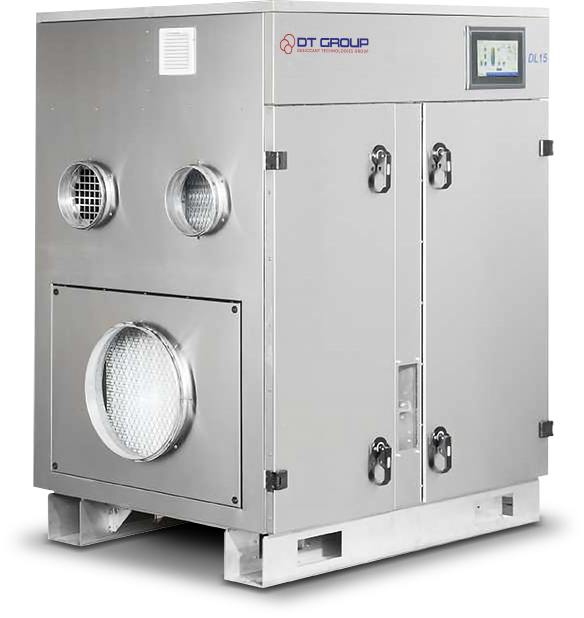

DL15
Rated airflow: 1500 m³/h
Dehumidification: 8.4 l/h
Power supply:13 kW
Weight: 233 kg
Dimensions: 1000x800x1300mm
DL25
Rated airflow: 2500 m³/h
Dehumidification: 16 l/h
Power supply: 21.5 kW
Weight: 365 kg
Dimensions: 1200x1000x1520mm
DL35
Rated airflow: 3500 m³/h
Dehumidification: 21.9 l/h
Power supply: 27.2 kW
Weight: 498 kg
Dimensions: 1355x1200x1680mm

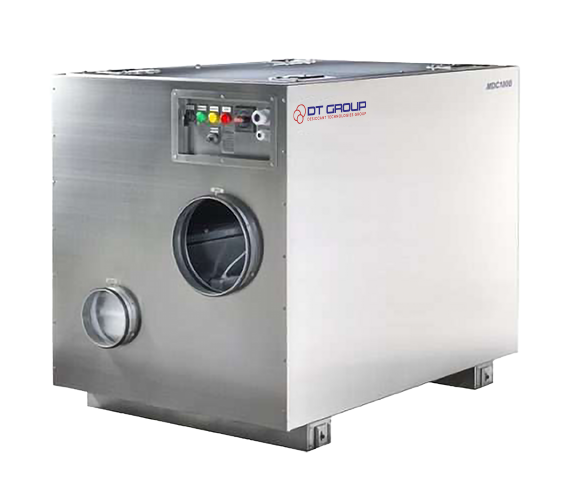

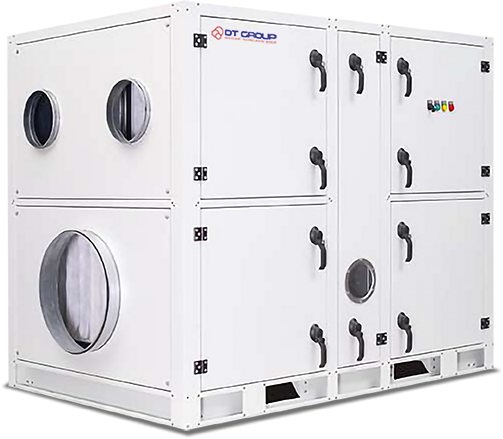

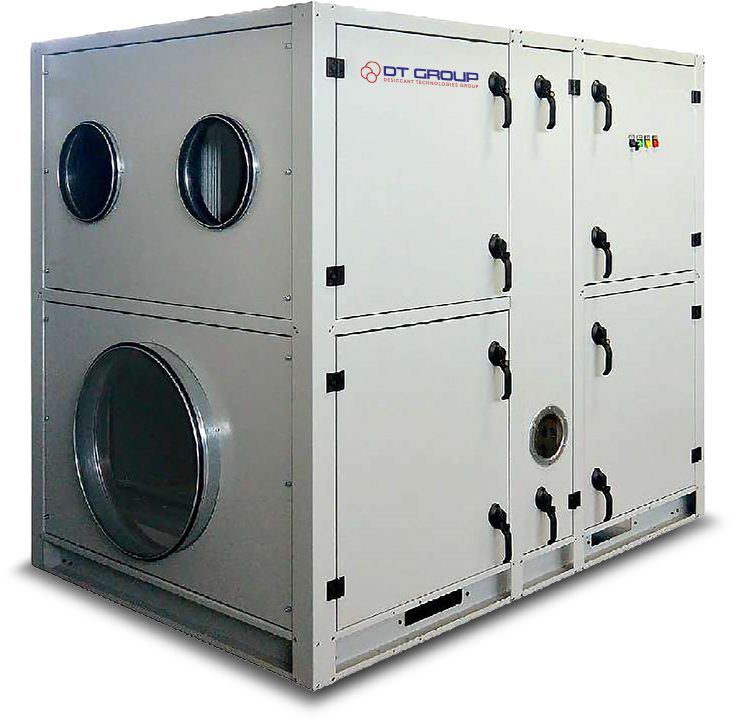

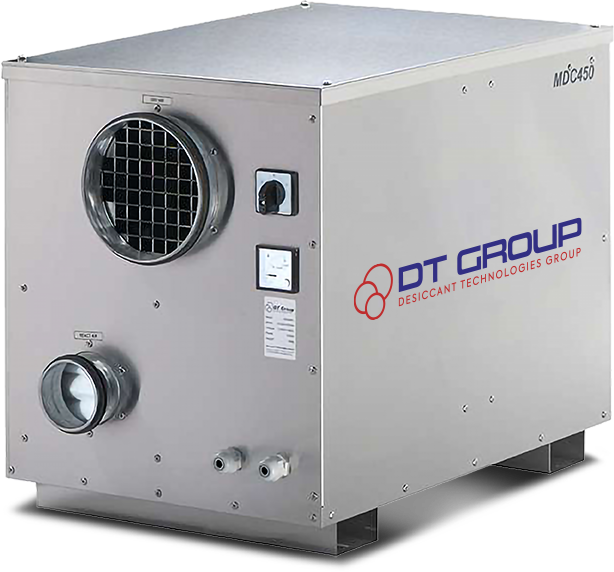

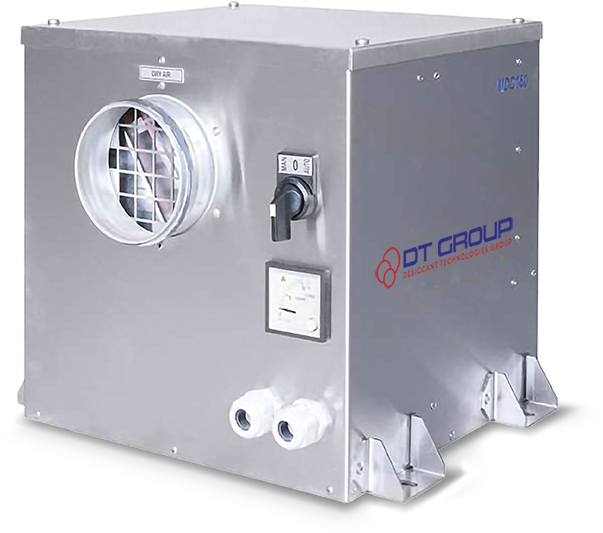

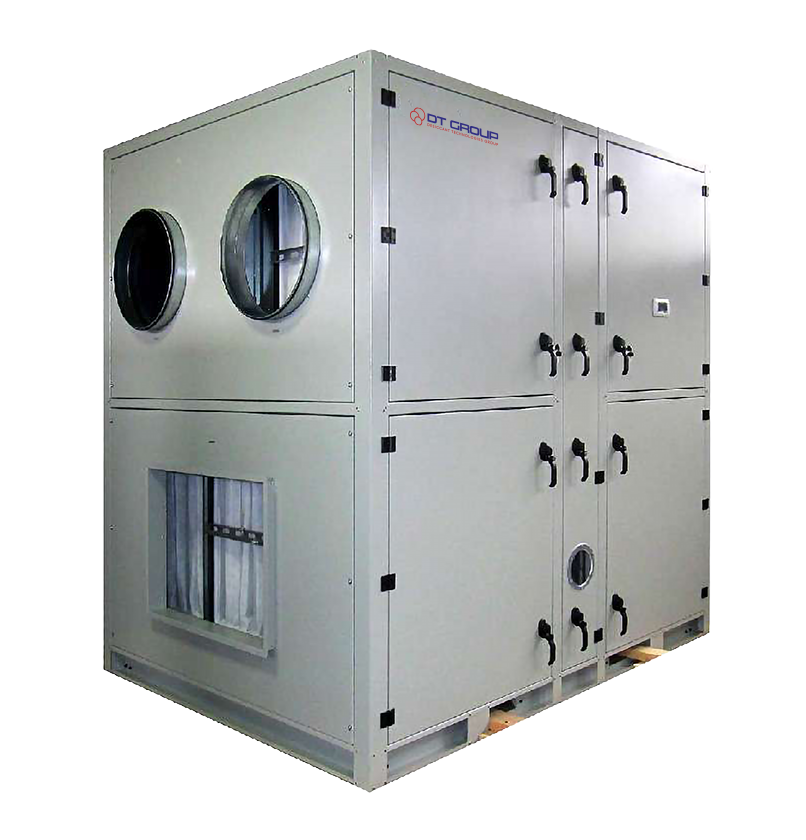

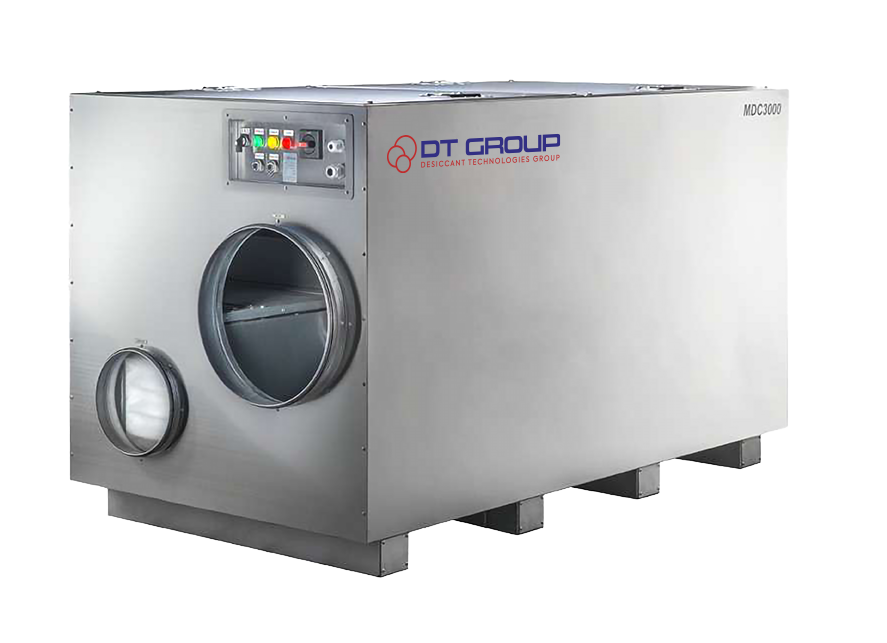

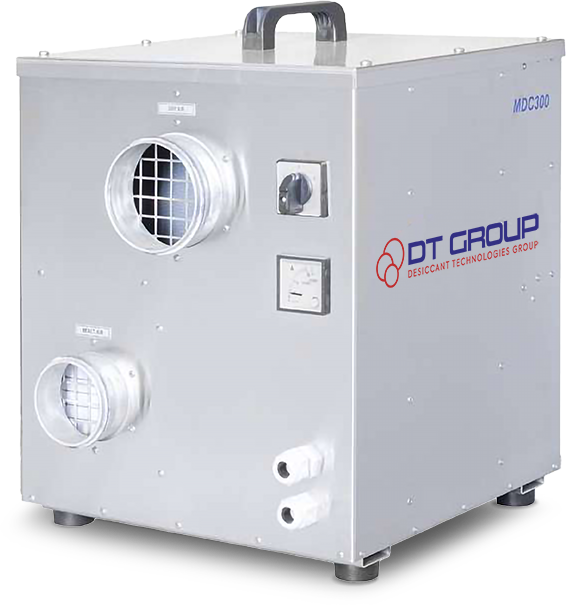

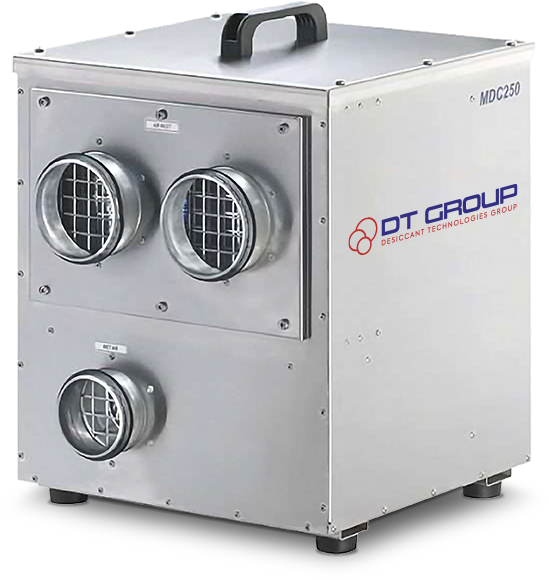

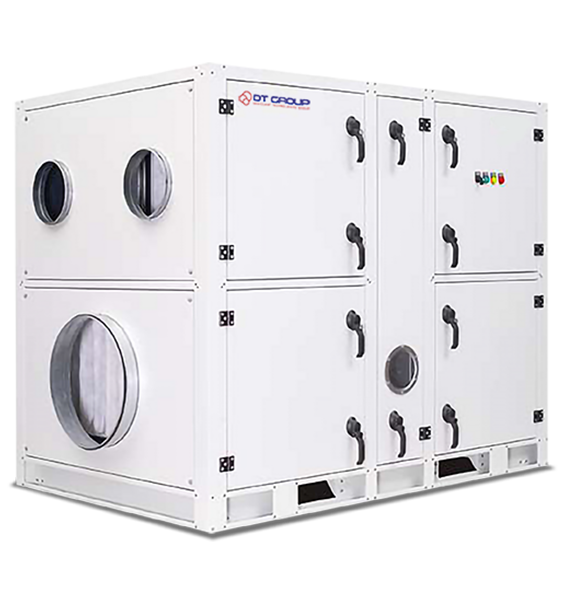

MDC Range Overview
The MDC Range serves mid to high airflow demands, delivering robust moisture control and energy-efficient heat recovery. These units excel in general dehumidification, process drying, and large-space humidity management.
Key Characteristics
- Airflow Capacity: 160-18,000 m³/h
- Moisture Removal: Up to 102.6 kg/h (226.3 lb/h)
- Power Supply: 1 kW-165 kW (3×400 V, 50 Hz)
Applications: Large dry-rooms, warehouses, production halls, and environments requiring continuous operation in low-temperature or low-humidity conditions.
Desiccant Dehumidifiers | Full MDC Range
LDP Range Overview

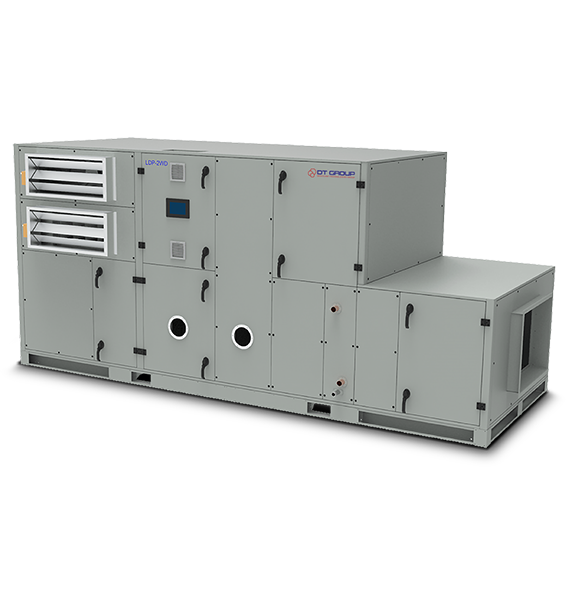

The LDP Range specializes in ultra-low dew-point systems for critical applications like lithium-ion battery dry rooms and cleanroom environments. These all-in-one air-handling units combine dehumidification, temperature control, and high efficiency.
Key Characteristics
- Airflow Capacity: 1,000-50,000 m³/h
- Dew-Point Capability: Down to -50 °C (-58 °F) for single-rotor (LDP-
- 1DW) and -80 °C (-112 °F) for dual-rotor (LDP-2DW) systems
- Energy Savings: Up to 50 % lower power consumption versus single-rotor units
Applications: Battery manufacturing, fluid-bed drying, semiconductor fabs, and any setting requiring dew points far below ambient.
Desiccant Dehumidifiers LDP | Full Range

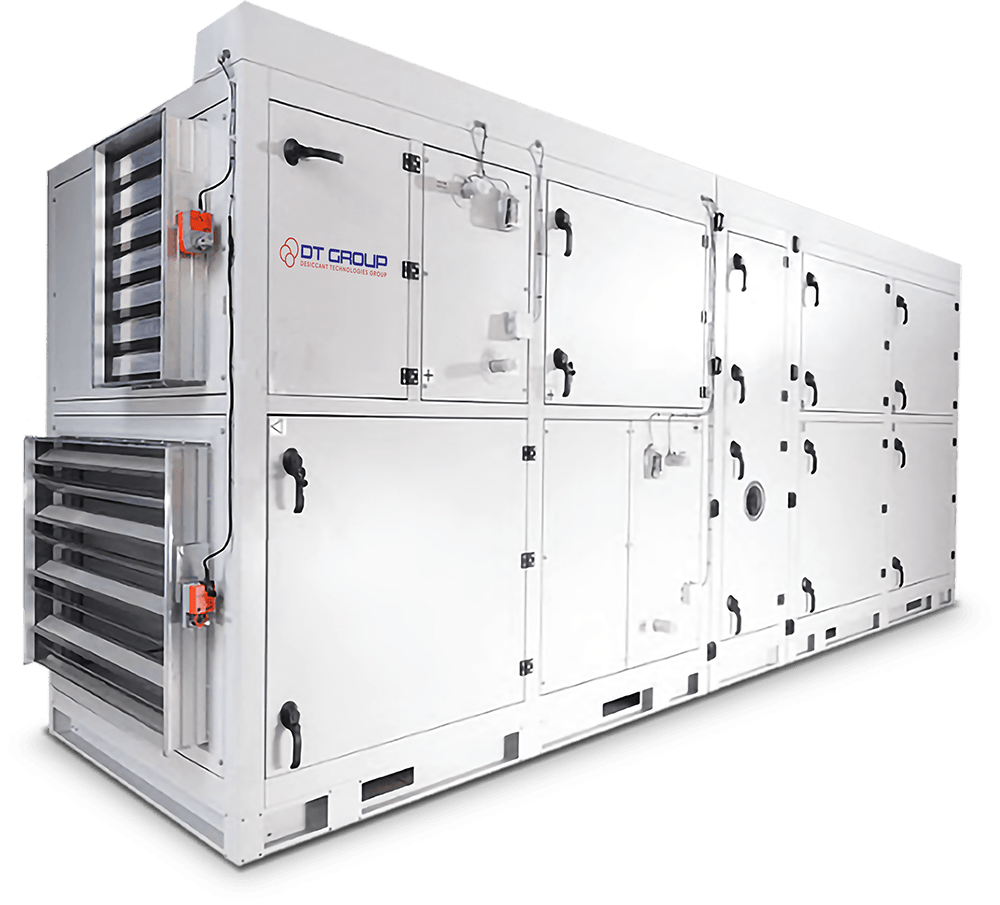

Custom Air Handling Units
- Rated airflow – 7600 m³/h
- Dehumidification – 34 kg/h (20ºC/60% RH)
- Power supply – 44 kW (3×400 V, 50 Hz)
- Dimensions – 850 kg
