Haier Ducted AC
Vision Air Condition Trading is the top Distributor for Haier Concealed Duct AC Supply & Installation in the UAE
Vision Air Condition Trading is the authorized ducted ac distributor and supplier for Haier Duct AC in the UAE. We stock Haier Ducted units engineered for the Gulf climate. Our T3 compressors cool efficiently even at 55°C. We are the leading and top-rated supplier of all ducted ac systems in the UAE
The "Slim" Solution for Villas

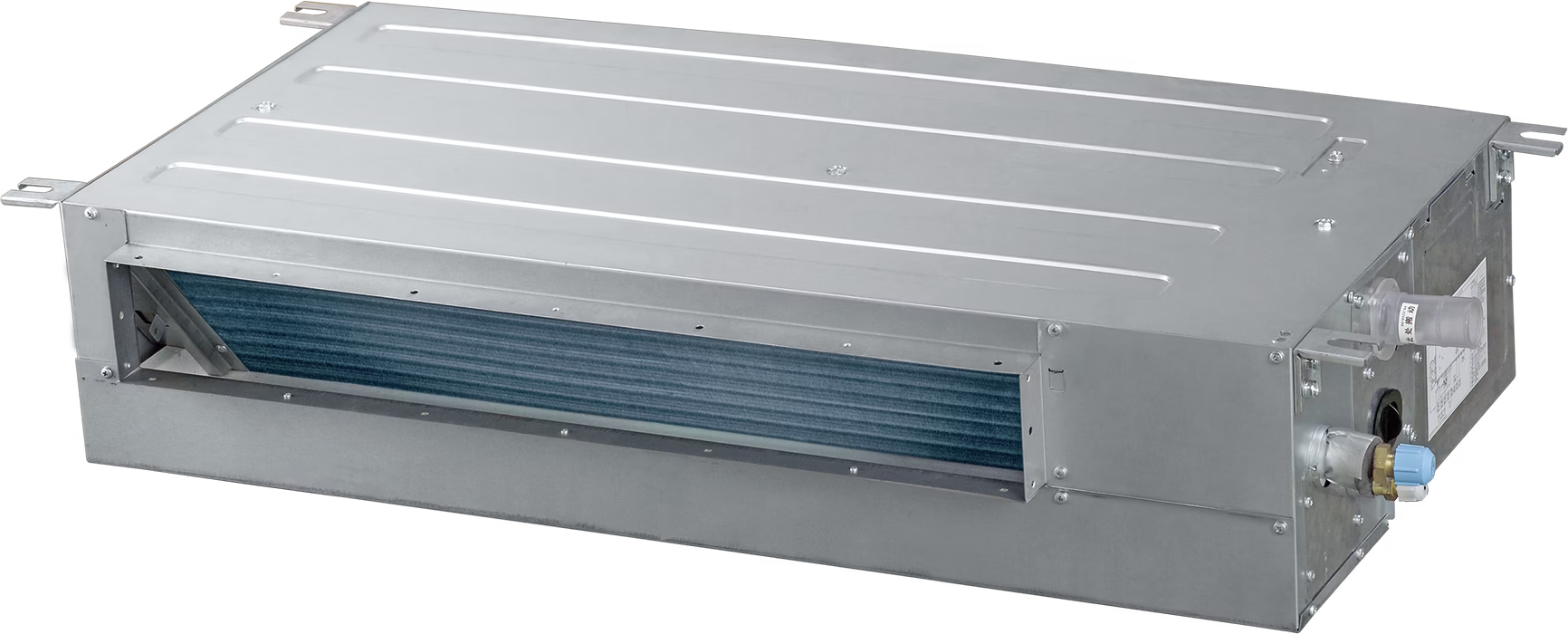

Low Height Ceiling Concealed Duct Air Conditioner
You need cooling that fits tight ceiling spaces. Haier ducted split units are only 248mm high. They fit where other brands cannot. This makes them the standard choice for luxury villas in Jumeirah, Hills, and Damac layouts.
Benefits of Haier Concealed Ducted Air Conditioners:
- Ultra-Slim Profile: Slim height design saves ceiling space.
- Silent Operation: 26dB(A) noise level for quiet bedrooms.
- T3 high ambient operation for the UAE.
- Inverter and On-Off choices to match budget and load.
- Zoning options, wide capacity coverage.
You need cooling that fits tight ceiling spaces. Haier ducted split units are only 248mm high. They fit where other brands cannot. This makes them the standard choice for luxury villas in Jumeirah, Hills, and Damac layouts.
Benefits of Haier Concealed Ducted Air Conditioners:
- Ultra-Slim Profile: Slim height design saves ceiling space.
- Silent Operation: 26dB(A) noise level for quiet bedrooms.
- T3 high ambient operation for the UAE.
- Inverter and On-Off choices to match budget and load.
- Zoning options, wide capacity coverage.
Why Choose Us for Haier Ducted AC Supply in the UAE?
- Genuine parts, local support, official warranty
- Quiet supply grills and even temperature
- Professional Installation Services
Commercial Services
Authorized Ducted AC Dealer & Installer
We are not just another air conditioning supplier. We are HVAC engineers. As your local ducted air conditioner Dubai partner, we handle the full project cycle.
- Heat Load Calculation: We calculate the exact tonnage you need.
- Duct Design: We design balanced airflow systems to avoid hot spots.
- Installation: Our certified teams install units, ducts, and grills.
- Warranty: We honor the official 5-Year Compressor Warranty.

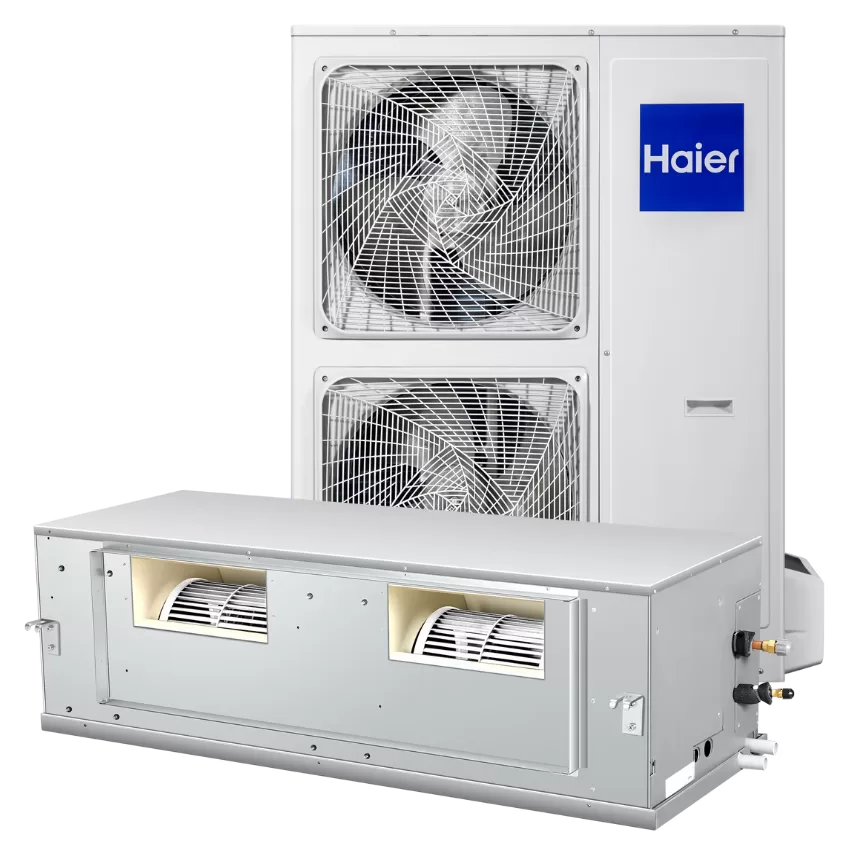

Technical Data: Haier T3 Ducted Series
Compare our duct air conditioners against standard market specs. We offer high static pressure options for long duct runs.
Inverter ducted: popular pairings
| Indoor (IDU) | Outdoor (ODU) | Power supply | Refrigerant | Notes |
|---|---|---|---|---|
| AD24MH2ERT | 1U24RH2ERT | 1Ph 220-240V 50Hz | R410A | T3, compact villa and retail zones |
| AD36MH2ERT | 1U36NH2ERT | 1Ph 220-240V 50Hz | R410A | Strong airflow options |
| AD48HH2ERT | 1U48PH2ERT or 1U48PH2ERU | 3Ph 380-415V 50Hz | R410A | Larger areas, stable at high ambient |
| AD60HH2ERT | 1U60PH2ERT or 1U60PH2ERU | 3Ph 380-415V 50Hz | R410A | Medium halls, open-plan spaces |
| AD72HH2ERT | 1U72PH2ERU | 3Ph 380-415V 50Hz | R410A | Bigger zones, long duct runs |
On-Off ducted: popular pairings
| Indoor (IDU) | Outdoor (ODU) | Power supply | Refrigerant | Notes |
|---|---|---|---|---|
| AD18MH1EAA | 1U18JH1EAM | 1Ph 220-240V 50Hz | R410A | Value choice for bedrooms and small offices |
| AD24MH1EAA | 1U24SH1EAM | 1Ph 220-240V 50Hz | R410A | Balanced performance and cost |
| AD36MH1EAA | 1U36IH1EAM | 1Ph 220-240V 50Hz | R410A | Medium rooms, simple controls |
| AD48MH1EAA | 1U48IH1EAN | 3Ph 380-415V 50Hz | R410A | Larger rooms, steady cooling |
| AD60HH1EAA | 1U60PH1EAN | 3Ph 380-415V 50Hz | R410A | High airflow demand, durable setup |
Specs such as airflow, pipe sizes, max length, and max lift are available per model in the official brochures. We include them on PDPs and BOQs.
Inverter
Ducted Split AC
Haier Inverter 1.5 Ton (Low Static)
Model: AD18MH2ERT / 1U18RH2ERT
✓ T3 Tropical Compressor
Inverter
Ducted Split AC
Haier Inverter 2.0 Ton (Mid Static)
Model: AD24MH2ERT / 1U24RH2ERT
✓ T3 Tropical Compressor
Inverter
Ducted Split AC
Haier Inverter 3.0 Ton (High Static)
Model: AD36MH2ERT / 1U36NH2ERT
✓ T3 Tropical Compressor
Inverter
Ducted Split AC
Haier Inverter 4.0 Ton (High Static)
Model: AD48HH2ERT / 1U48PH2ERT
✓ T3 Tropical Compressor
Inverter
Ducted Split AC
Haier Inverter 5.0 Ton (High Static)
Model: AD60HH2ERT / 1U60PH2ERT
✓ T3 Tropical Compressor
Inverter
Ducted Split AC
Haier Inverter 6.0 Ton (Commercial)
Model: AD72HH2ERT / 1U72PH2ERU
✓ T3 Tropical Compressor
On-Off
Standard Ducted AC
Haier On-Off 1.5 Ton
Model: AD18MH1EAA / 1U18JH1EAM
✓ T3 Tropical Compressor
On-Off
Standard Ducted AC
Haier On-Off 2.0 Ton
Model: AD24MH1EAA / 1U24SH1EAM
✓ T3 Tropical Compressor
Frequently Asked Questions!
What is the static pressure of Haier Ducted units?
Our residential units range from 0 to 50 Pa (Low Static) for silent operation. Our commercial models go up to 150 Pa (High Static) to handle long ductwork.
Do you supply T3 ducted ACs?
Yes. Every Haier Ducted AC we supply is T3 Certified for 55°C ambient temperatures.
Who is the authorized Haier Ducted AC supplier in Dubai?
Vision Air Condition Trading LLC is the authorized distributor and supplier for Haier Ducted ACs in Dubai and the Northern Emirates.
Is inverter worth it for ducted?
Yes. Inverter saves energy at part load and improves comfort. It is ideal for mixed schedules and multi-room use.
Can I zone rooms?
Yes. With motorized dampers and compatible controls, you can zone living, bedrooms, and common areas.
Do you handle installation and warranty?
Yes. Design, supply, installation, commissioning, and warranty are handled by us as the official Haier distributor.
Why is Haier T3 AC recommended for the UAE?
Haier T3 air conditioners are specifically designed for high-ambient climates like the UAE. They continue to operate efficiently even when outside temperatures exceed 50°C, ensuring consistent cooling.
Are Haier Ducted ACs energy efficient?
Yes, Haier Ducted ACs are available in Inverter models (T3 Inverter) which adjust compressor speed to save up to 60% energy compared to traditional non-inverter systems.
Who is the authorized distributor of Haier Air Conditioners in the UAE?
Vision Air Condition Trading LLC (Vision Trade) is the official authorized distributor for Haier Air Conditioners in Dubai and the UAE, supplying residential, commercial, and VRF systems.
Are you the official supplier for Haier Ducted Split ACs?
Yes, we are the official supplier. We stock the full range of Haier Ducted Split ACs, including T3 Inverter and On-Off models specifically built for the UAE climate.
Contact Vision Air Condition Trading: The DX system experts and the leading and top-rated supplier of all ducted ac systems in the UAE
